The Alpha A-15 Bandsaw features an advanced intelligent control system with a full-color touchscreen display that provides real-time monitoring of blade tension, table tilt angle, and cutting speed. The system includes WiFi and Bluetooth connectivity, voice control capabilities (activated by "Hi Harvey"), digital calibration features, and over-the-air software update capability for future enhancements. The touchscreen displays tension values from 0-6000N, precise table angles from -5° to 45°, and blade speeds in real-time.

The Alpha A-15 Bandsaw offers two cutting speeds: 2300 FPM (700 m/min) for cutting wet wood and dense materials, and 4300 FPM (1300 m/min) for cutting dry wood and general woodworking. Speed changes are made by repositioning the drive belt on the motor pulley system. The digital display shows the current blade speed in real-time, eliminating guesswork.

The Alpha A-15 Bandsaw has a 14-1/2" maximum cutting height (resaw capacity) with a 14-1/4" throat capacity. The work table measures 21-5/8" × 19-3/4" (550×500mm), providing ample support for large workpieces. The minimum workpiece width is 10mm (approximately 3/8").

Requires 230V single-phase power, 60Hz frequency, with 14A full-load current. Needs a NEMA 6-20 receptacle and a 20A circuit breaker for protection. All electrical connections must be made by a qualified electrician following local electrical codes.

Total dimensions: 28-3/4" × 19-3/4" footprint, 76-3/4" height (78-3/4" maximum with attachments). Net weight is 694 lbs (315 kg) – nearly double the weight of standard 15" bandsaws for enhanced stability. Work table height is 38-1/2" (978mm).

The Alpha A-15 Bandsaw features voice interaction using the wake command "Hi Harvey" or "Hey Harvey". Current voice commands include: "Turn on the light" / "Turn off the light", "Enable/Disable network", "Enable/Disable Bluetooth", and language switching commands. Harvey plans to introduce additional voice-controlled features through future software updates.

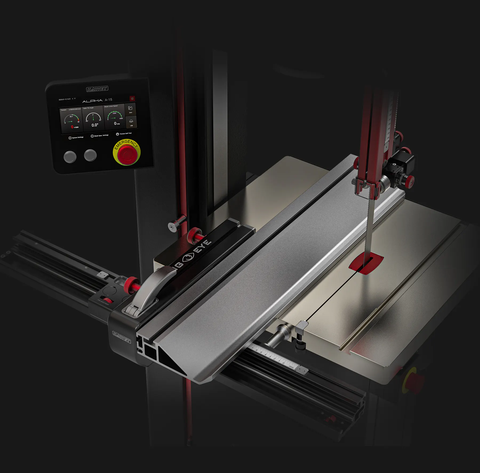

The Big Eye Rip Fence System features high-visibility scale windows on both sides of the fence, allowing operators to easily read measurements from either the left or right viewing position. The fence includes fine adjustment wheels for micro-positioning, quick-release locking, and can be configured as either a low fence (1/2" height) or high fence (6" height) depending on the application.

The intelligent control system includes a precision tension sensor that displays real-time blade tension from 0-6000N on the touchscreen. Before use, you input your blade width and thickness specifications, and the system recommends the optimal tension range displayed in green. The system also includes a "Tension Self-Test" function to verify sensor accuracy and calibration.

The table tilts smoothly from -5° left to 45° right using a precision worm gear and rack system with gas piston assistance. The digital display shows the exact angle in real-time. The system features preset stops at -5°, 0°, and 45° positions, and includes a digital calibration function accessible through the touchscreen to ensure accuracy.

Speed changes require manual repositioning of the drive belt. Loosen the motor locking handle, lift the motor, move the belt to the desired pulley groove (small groove for high speed, large groove for low speed), then press down to tension the belt and tighten the locking handle. The touchscreen will display the current speed once the machine is running.

The ball bearing blade guides feature tool-less adjustment knobs with fine positioning capability. The guides include side guide depth knobs, side guide width knobs, and back guide adjustment knobs. Each guide position has integrated scale rings for reference. Guides should be positioned behind the blade gullets with approximately 0.001" (0.02mm) clearance on sides and 1/32" (0.79mm) behind the blade. Regular cleaning and checking for wear is recommended.

The Alpha A-15 Bandsaw includes: dual emergency stop buttons (control panel and table side), safety shutoff mechanism with two cabinet door sensors, magnetic motor brake, LED work light, tool-less blade guide adjustments, COMPASS RG-2 roller guide, reinforced 694-lb frame, self-locking fence and table mechanisms, blade guard with viewing window, and nickel allergy warning labels.

Yes, the Alpha A-15 Bandsaw supports over-the-air (OTA) software updates through its WiFi connectivity. Connect to WiFi, access the System Settings menu on the touchscreen, and select "Version Update" to check for and install updates. Harvey plans to introduce additional voice control features and functionality improvements through future updates.

The Alpha A-15 Bandsaw arrives fully assembled on a delivery pallet. Setup involves: removing from pallet (forklift or lifting equipment recommended due to 694 lb weight), adjusting rear leveling feet, installing the display assembly (4 screws + 2 aviation plugs), installing front and rear guide rails, installing fence assembly, installing blade, and calibrating. Detailed instructions with diagrams are provided in the comprehensive 63-page manual.

Fence body dimensions: 1/2" and 6" height positions × 29-3/4" long (12.5mm and 155mm × 755mm). Features include: Big Eye viewing windows (left and right), fine adjustment wheel for micro-positioning, eccentric positioning blocks for fence-to-table distance adjustment, quick-release locking with adjustable locking force, dual flip positioning stops on rail, copper shim adjustment system for squareness, and integrated metric/imperial scale rulers.

Included: Band saw fully assembled, Big Eye fence assembly, COMPASS RG-2 roller guide, display assembly with touchscreen, front and rear guide rails with scale rulers, blade guide scale ruler (metric/imperial), dust cover, handle, tool holder, emergency stop button box, comprehensive tool kit (open wrenches 7/8/13-27/16/18, Allen keys 2-8mm), installation hardware, two eye bolts. Separate purchases: Additional blades (143-3/4" length), mobile base, specialized jigs, aftermarket accessories.

The Alpha A-15 Bandsaw features a fully enclosed internal dust extraction system with dual ports (upper and lower). MANDATORY dust collection requirements: minimum airflow ≥650 m³/h (367 CFM), pressure drop ≥1000 Pa, minimum air velocity in ducting ≥22 m/s, duct inner diameter 100mm (4"). The dust port is located at the rear of the machine for connecting corrugated dust hose (must be properly grounded).

T-slot dimensions: 1" × 5/32" × 3/4" (25.4mm × 4.25mm × 19.05mm). The T-slot runs parallel to the blade and is used for mounting miter gauges, crosscut sleds, jigs, and other accessories. The slot must be kept clean for smooth accessory operation.

The table tilt angle is monitored by a precision sensor and displayed in real-time on the touchscreen from -5° to 45°. The system includes a calibration function: tap "ZERO" on the display, rotate table to 0° (90° to blade), check confirmation box, and tap "Confirm" to save calibration. The display updates continuously as you adjust the table angle.

The Alpha A-15 Bandsaw features the intelligent control system with touchscreen display, digital blade tension monitoring, digital table angle display, voice control, WiFi/Bluetooth connectivity, software update capability, and fully enclosed internal dust collection. The standard HW615 is a traditional manual bandsaw without these intelligent features. The Alpha A-15 Bandsaw is also heavier (694 lbs vs ~440 lbs) with enhanced structural rigidity.

Yes, features precise tracking adjustment using a tracking knob and locking mechanism. Turn the tracking handle counterclockwise to unlock, rotate the tracking knob to adjust blade position (counterclockwise moves blade backward, clockwise moves forward), then turn tracking handle clockwise to lock. The system includes a tracking window for visual monitoring. Dynamically balanced 15" flywheels maintain accurate tracking.

The Alpha A-15 Bandsaw uses 143-3/4" ± 1/4" (3650mm ± 5mm) blade length, width range 1/8" to 1" (3-25mm). Blade tension range: 0-6000N with digital display. These are standard 15" bandsaw blade sizes readily available from blade suppliers. The digital tension system accommodates all blade widths and thicknesses within the specified range.

The digital tension sensor provides real-time tension readings from 0-6000N (0-1348 lbs). The system includes a "Tension Self-Test" function that should be run regularly to verify sensor accuracy. When properly calibrated, the system provides precise tension monitoring far more accurate than traditional spring-based tension indicators.

Standard: 2-year limited warranty from date of retail purchase covering defects in materials and workmanship under normal use. Pioneers Edition (first 50 buyers): 5-year warranty plus exclusive privileges including limited numbered badge. Warranty requires proof of purchase and does not cover misuse, normal wear and tear, unauthorized repairs, or lack of proper maintenance.

Always wear certified safety goggles and hearing protection. Remove ties, rings, watches, and jewelry. Roll sleeves past elbows, remove loose clothing, and confine long hair. When handling blades, wear protective gloves, long protective pants, and certified safety shoes (with anti-saw protection, steel toe caps, and slip-resistant soles). Keep visitors at safe distance and prohibit children from work area.

The Alpha A-15 Bandsaw includes two safety shutoff sensors that prevent the machine from starting when either the upper or lower cabinet door is open. If a door is opened during operation, the system will alarm. The machine will not restart until both doors are fully closed and locked, and emergency stops are released.

Two emergency stop buttons are provided: one on the front control panel and one on the side of the table. Pressing either button immediately halts all machine operation. The machine cannot be restarted until the emergency stop button is released (rotated clockwise to pop out). Both buttons must be in the released position for machine startup.

Press the emergency stop button immediately. Do not attempt to remove the workpiece or make adjustments until the blade comes to a complete stop. The magnetic brake will assist in stopping, but always wait for complete blade stoppage before approaching the cutting area.

No. Never leave the machine running unattended. Press the "OFF" button on the touchscreen and do not leave until the blade comes to a complete stop. Use the emergency stop buttons if you must step away temporarily to prevent accidental startup.

Hold stock firmly and feed at a stable, controlled speed. Do not force the workpiece into the blade. Use push-sticks for narrow pieces (less than 4-3/4" wide). Keep material pressed against the fence or use appropriate jigs. The LED work light helps maintain visibility of the cutting line.

Always wear protective gloves and safety glasses. Disconnect power supply first. Press both emergency stop buttons. Pull the tensioning lever to "FULL RELEASE" position. Open cabinet doors (sensors will prevent accidental startup). New blades are coiled – uncoil slowly and carefully staying 20 feet away from others. Ensure all guards are properly reinstalled after blade changes.

Must be properly grounded using a 230V single-phase circuit with 20A circuit breaker protection. Uses NEMA 6-20 receptacle. All electrical connections must be made by qualified electricians following local codes. The machine includes a grounding conductor and grounding plug. Never modify the provided plug. If the outlet doesn't fit, have the electrician install a matching outlet.

The upper blade guide should be positioned approximately 1/4" (6mm) above the workpiece to minimize blade exposure while maintaining proper support. The guide post includes a built-in digital scale ruler to help set precise heights. Lower the guide using the blade guide elevation wheel until proper clearance is achieved.

The table and flywheels are coated with nickel plating which can cause allergic reactions in sensitive individuals with repeated or prolonged skin contact. If you have a known nickel allergy, wear protective gloves when operating the machine and wash hands thoroughly afterward. Discontinue use and seek medical advice if you develop rash, itching, or swelling.

3HP (2.2kW) industrial-grade motor, 230V single-phase, 60Hz frequency, 14A full-load current. Requires NEMA 6-20 receptacle and 20A circuit breaker. Motor includes eye bolt for motor removal only (not for lifting entire machine).

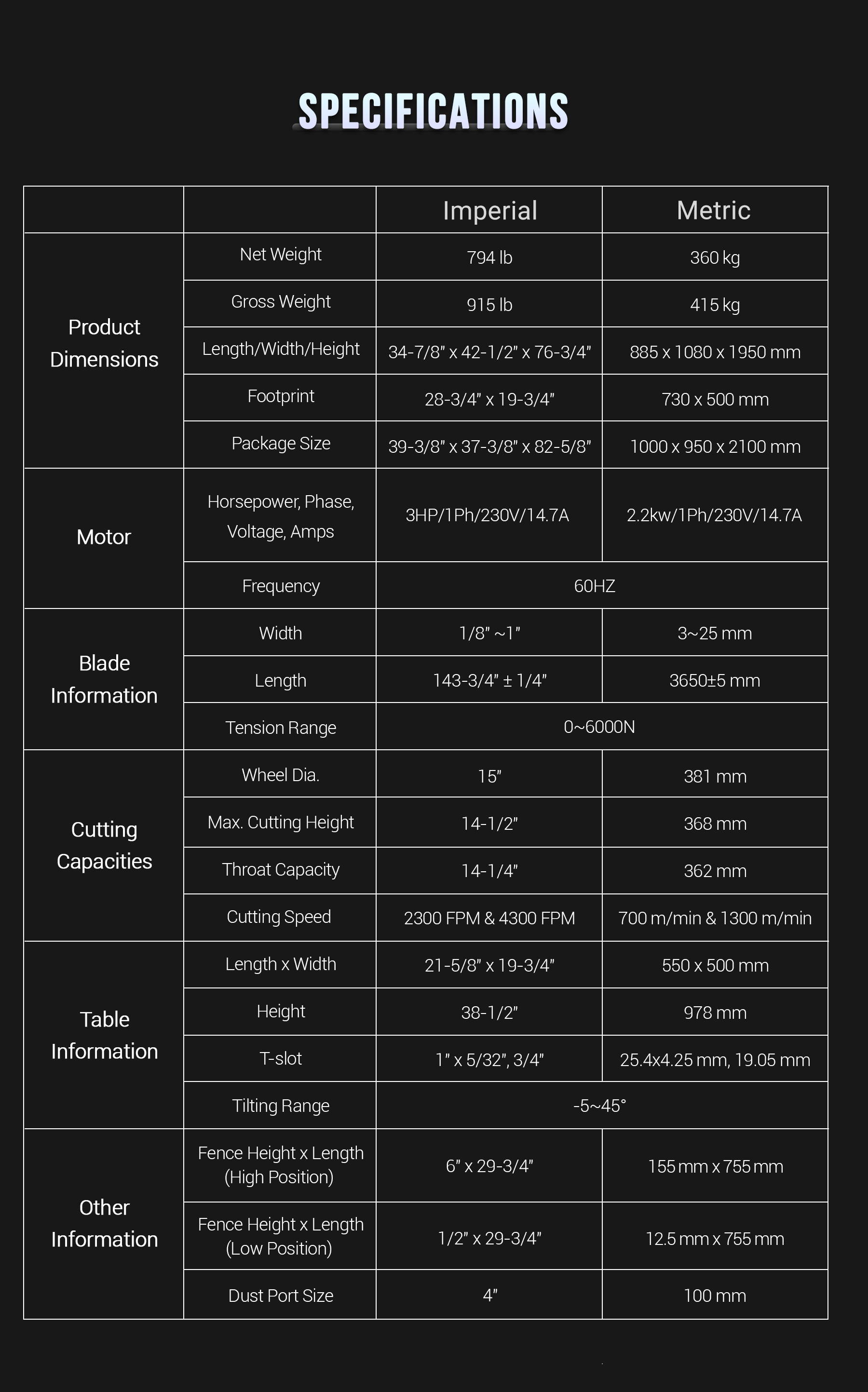

Maximum resaw capacity: 14-1/2" (368mm). Throat capacity: 14-1/4" (362mm). Maximum cutting height: 14-1/2" (368mm). These dimensions determine the largest stock you can process. Minimum workpiece width: 10mm (3/8").

Work table size: 21-5/8" × 19-3/4" (550×500mm). Table height: 38-1/2" (978mm). Tilts -5° left to 45° right with digital display. Features precision ground cast iron with nickel plating (500-700HV hardness). Includes 1" × 5/32" × 3/4" T-slot. Zero-backlash tilting system with gas piston assistance.

Footprint: 28-3/4" × 19-3/4" (730×500mm). Height: 76-3/4" (1950mm), maximum 78-3/4" (2000mm). Net weight: 694 lbs (315kg). Shipping weight: 794 lbs (360kg). Packing dimensions: 39-3/8" × 37-3/8" × 82-5/8" (1000×950×2100mm).

Flywheel diameter: 15" (381mm). Features heavy-duty dynamically balanced cast iron flywheels with nickel plating (500-700HV hardness). Flywheels are precision-engineered for smooth operation and accurate blade tracking. Tracking adjustment includes viewing window for visual monitoring.

Full-color touchscreen display with real-time monitoring. Digital blade tension display: 0-6000N range. Digital table angle display: -5° to 45°. Digital blade speed display: 2300/4300 FPM. WiFi 802.11 b/g/n connectivity. Bluetooth connectivity. Voice control with "Hi Harvey" wake word. OTA software update capability. System settings for language (English/Chinese/German), units (metric/imperial), date/time, and connectivity.

System Settings button, Blade Tension Display (0-6000N), Table Tilt Angle Display (-5° to 45°), Blade Speed Display (2300/4300 FPM), Machine Alarm Information display, Calibration button, Lighting Switch (LED control), Tension Self-Test button, Emergency Stop button, Blade Spec Setting button, Off button, On button, Microphone for voice control, Speaker for audio feedback.

Sound Power Level: ≤67 dB(A). Sound Pressure Level: ≤57 dB(A). Measurement Uncertainty: 4 dB(A). Measured in accordance with ISO 3746:2010 and ISO 11202. Note: These values represent emission levels under specific test conditions and may not reflect safe exposure levels in actual working environments. Hearing protection recommended.
